Products » Coaxial Cables » RG 59/U-4

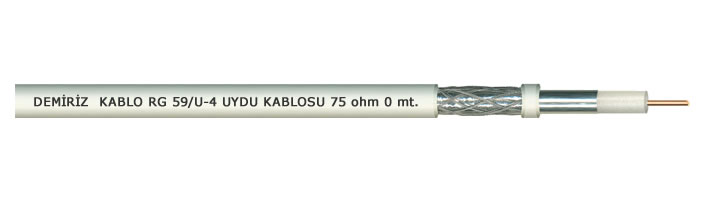

Click image to zoom. Click here to open in a new window.

Electrical Measurements

Capacitance		57 pf/m
Indepance		75 ± 3Ω
Velocity		0,78
Insulation Resistance		>2000 MΩ km
Working Temperature		- 40°C + 70°C
Working Voltage		2 kV
Test Voltage		5 kV
Min. Bending Radius		10 x D

Attenuation

100 MHz		9,20 dB/100 m
200 MHz		14,00 dB/100 m
500 MHz		21,40 dB/100 m
800 MHz		27,00 dB/100 m
1000 MHz		30,50 dB/100 m
1750 MHz		42,00 dB/100 m

This type of cables are used for CATV indoor distributions and connections of systems need low attenuations.

Yapısı

Inner Conductor		Cu
Conductor Diameter		1x0,80 mm
Insulation		PEE
Insulation Diameter		3,70 mm
Screen Tape		Al-Pet
Braid		Al %60
Outer Sheath		PVC
Steath Diameter		6,0 mm
Colour of the Sheath		White
Approx Weight		40 kg/km
Standard Packing		100 - 500 m
