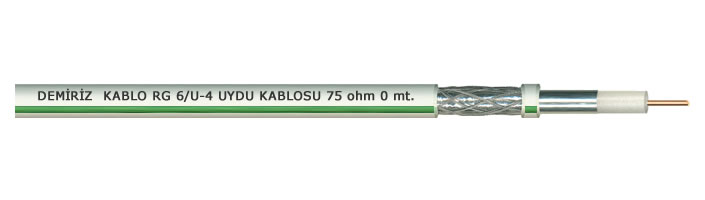

Products » Coaxial Cables » RG 6/U-4

Click image to zoom. Click here to open in a new window.

Electrical Measurements

Capacitance		57 pf/m
Indepance		75 ± 3Ω
Velocity		0,78
Insulation Resistance		>2000 MΩ km
Working Temperature		- 40°C + 70°C
Working Voltage		1,1 kV
Test Voltage		2,5 kV
Min. Bending Radius		10 x D

Attenuation

100 MHz		6,90 dB/100 m
200 MHz		10,20 dB/100 m
500 MHz		16,40 dB/100 m
800 MHz		21,00 dB/100 m
1000 MHz		22,00 dB/100 m
1750 MHz		30,00 dB/100 m

Bina içi CATV, CCTV dağıtım kablosu ve düşük zayıflama istenen SATV (uydu anten) sistemlerinde bağlantı kablosu olarak kullanılır.

Yapısı

Inner Conductor		Cu
Conductor Diameter		1x1,00 mm
Insulation		PEE
Insulation Diameter		4,70 mm
Screen Tape		Al-Pet
Braid		Al %60
Outer Sheath		PVC
Steath Diameter		7,0 mm
Colour of the Sheath		Green-White
Approx Weight		53 kg/km
Standard Packing		100 - 500 m
