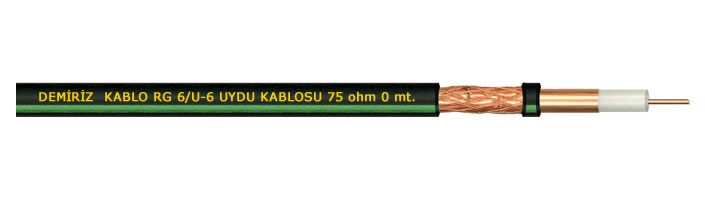

Products » Coaxial Cables » RG 6/U-6

Click image to zoom. Click here to open in a new window.

Electrical Measurements

Capacitance   57 pf/m
Indepance   75 ± 3Ω
Velocity   0,78
Insulation Resistance   >2000 MΩ km
Working Temperature   - 40°C + 70°C
Working Voltage   1,1 kV
Test Voltage   2,5 kV
Min. Bending Radius   10 x D

Attenuation

100 MHz   6,90 dB/100 m
200 MHz   10,20 dB/100 m
500 MHz   16,40 dB/100 m
800 MHz   21,00 dB/100 m
1000 MHz   22,00 dB/100 m
1750 MHz   30,00 dB/100 m

This type of cables are used for CATV indoor distributions and connections of systems need low attenuations.

Yapısı

Inner Conductor   Cu
Conductor Diameter   1x1,00 mm
Insulation   PEE
Insulation Diameter   4,70 mm
Screen Tape   Cu-Pet
Braid   Cu %60
Outer Sheath   PVC
Steath Diameter   7,0 mm
Colour of the Sheath   Green-Black
Approx Weight   53 kg/km
Standard Packing   100 - 500 m
