DEMİRİZ - TDC 475 - DC Arc Welding Rectifier

Click image to zoom. Click here to open in a new window.

Multi-purpose, un-competable direct current (DC) welding machine for heavy duty site conditions such as pipe welds in shipyards, maintenance-restorative filling welds, assembling jobs, production on site and in more places of heavy industry. Capable of melting all types of basic, rutile, steel, cast and cellulosic electrodes.

PRODUCT FEATURES

Ability to weld with any type of rutile and basic electrodes
Reinforced body for working in heavy industry and job site conditions
Easy to move in rough areas due to large wheels
Adjustable welding current adjustment via magnetic core and the turntable attached to it
Mechanical scale showing the current set at the front panel
Capable of welding and cutting with long welding cables without performance degradation
Double transformer system with 6 coils
Cooling with 40 cm powerful fan

TECHNICAL PROPERTIES

Supply Voltage U1		3~ 380 V
Setting Range Imin-Imax		50 A - 600 A
Açık Devre Gerilimi U2		75 V (DC)
Maximum Giriş Gücü Primax		42 kVA
Güç Faktörü cosØ		0,85
Electrode Çapı		2,5 - 8
Kaynak Akımı	X 60	600 A
I2	% 100	320 A
Soğutma		Fan
Koruma Sınıfı		IP 21
Boyutlar (e/b/y) (mm)		770x1100x800
Ağırlık		300 kg

Inquiry form

If you are interested for further details and pricing of products, please fill out this inquiry form.

Ortaköy Sanayi Bölgesi Tiftik Sk. No:16 Selimpaşa Silivri / İstanbul TÜRKİYE

info@demirizelektrik.com.tr

Tel: +90 212 734 39 24

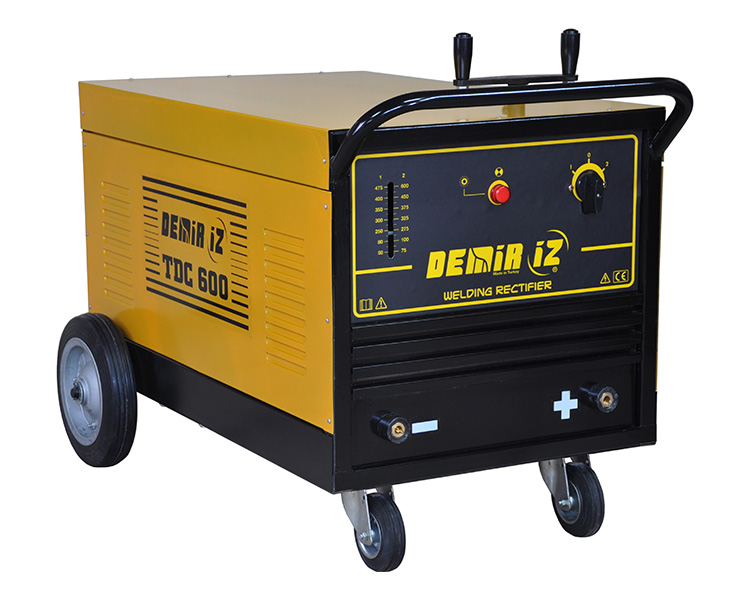

TDC 600
