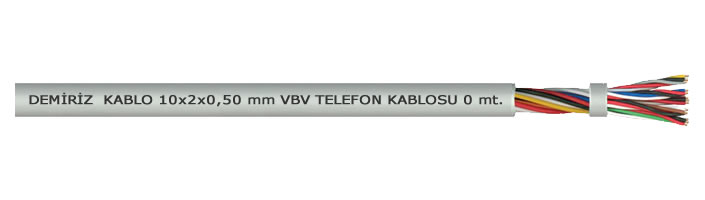

VBV & VBV-K
Telecommunication Cables
Electrical Measurements
| Standard |
TS 3930 / IEC 708, TS 2814 / IEC 60189-2 |
| Conductor Resistance |
0,50 mm = 97,8 Ω/km |
| Insulation Resistance |
Min. 500 MΩ .km |
| Mutual Capacitance |
Max. 56 nF/km (800 Hz) |
| Capacity Unbalanced |
500 pF/km between pairs |
| Working Voltage |
250 V |
| Dielectric Strength DC |
1000 V |
| Working Temperature |
- 30°C + 80°C |
| Min. Bending Raduis |
10 x D |
Teknik Ölçüler
| Cable Type |
Wall Thickness |
App. Overall D. |
App. Net Weight |
Coil Lenght |
| 1x2x0,40+0,40 |
0,90 mm |
3,20 mm |
15,68 kg/km |
100 m |
| 2x2x0,40+0,40 |
0,90 mm |
3,80 mm |
18,90 kg/km |
100 m |
| 3x2x0,40+0,40 |
1,00 mm |
4,40 mm |
25,53 kg/km |
100 m |
| 4x2x0,40+0,40 |
1,00 mm |
4,80 mm |
30,08 kg/km |
100 m |
| 5x2x0,40+0,40 |
1,00 mm |
5,20 mm |
34,00 kg/km |
100 m |
| 6x2x0,40+0,40 |
1,00 mm |
5,40 mm |
38,62 kg/km |
100 m |
| 10x2x0,40+0,40 |
1,10 mm |
6,60 mm |
57,50 kg/km |
100 m |
| 1x2x0,50+0,50 |
0,90 mm |
3,40 mm |
16,50 kg/km |
100 m |
| 2x2x0,50+0,50 |
0,90 mm |
4,00 mm |
23,40 kg/km |
100 m |
| 3x2x0,50+0,50 |
1,00 mm |
4,70 mm |
31,78 kg/km |
100 m |
| 4x2x0,50+0,50 |
1,00 mm |
5,20 mm |
37,93 kg/km |
100 m |
| 5x2x0,50+0,50 |
1,00 mm |
5,50 mm |
43,00 kg/km |
100 m |
| 6x2x0,50+0,50 |
1,00 mm |
5,90 mm |
49,59 kg/km |
100 m |
| 10x2x0,50+0,50 |
1,10 mm |
7,20 mm |
74,80 kg/km |
100 m |
These cables are used as telephone cables inside the buildings for signal transmision and subscriber distribution purposes. VBV-K has tinned copper conductor which this cable is used especially at humudity places.
Yapısı
| Conductor |
Cu, Mono; VBV - CuSn Mono; VBV-K |
| Insulation |
PE Compound |
| Outer Sheath |
PVC Compound, IEC 60189-2 |
| Colour of the Steath |
RAI 7032, Gri |
