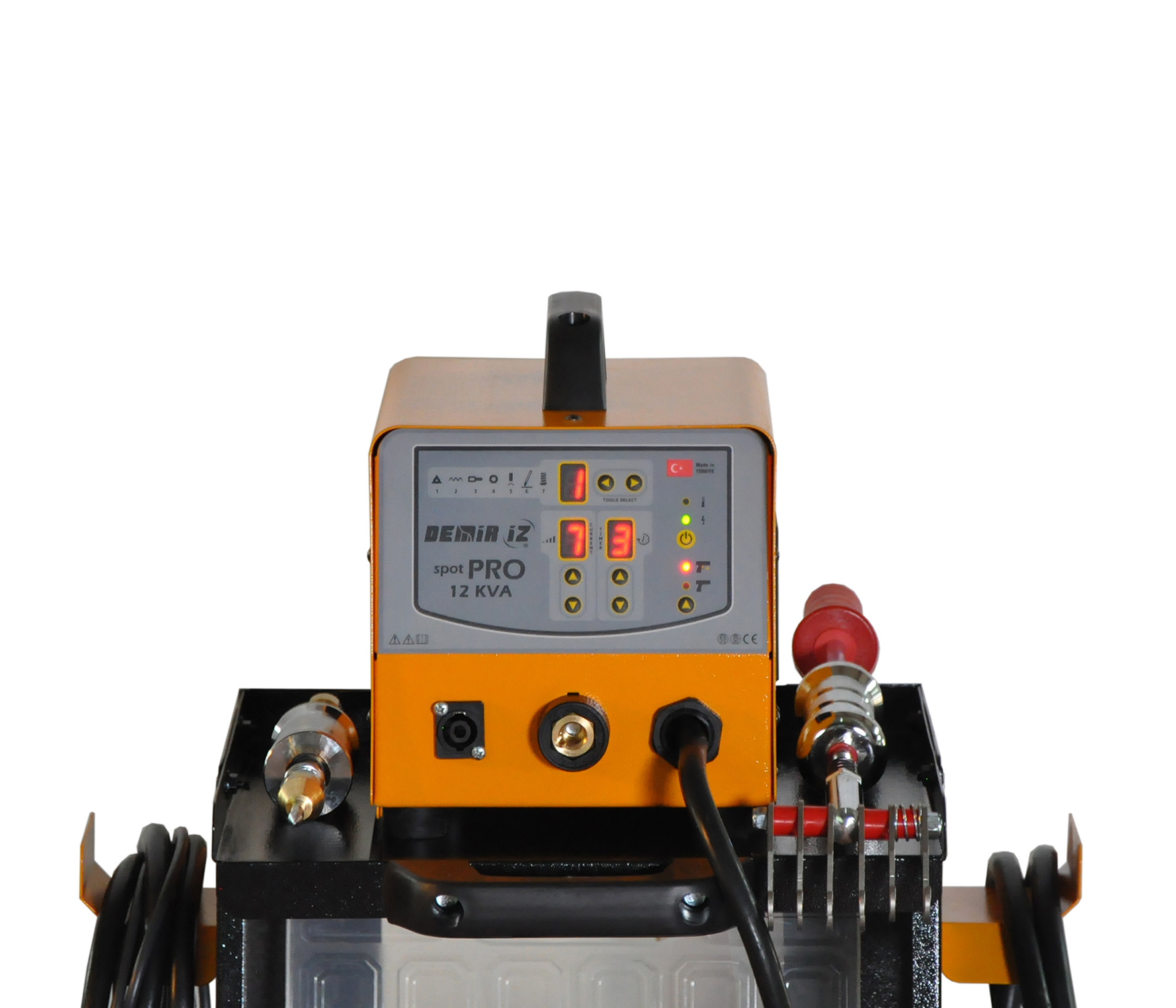

Spot PRO
Digital Car Body Dent Puller
Included Parts and Accessories
- Dent Puller (Slide Hammer)
- Pulling Star (5 pcs)
- Electrode for Welding Wavy Wire
- Wavy Wires (5 pcs)
- Spotting Electrode for Big Rings
- Big Ring (5 pcs)
- Spotting Electrod for Small Rings
- Carbon Electrode (1 pc)
- 4 m 3x2,50 mm2 Supply Cable
- 2 m Power Cable
- 2 m Earthing Cable
Spot PRO is designed to carry out multiple body shop tasks.
The operative has the choice of 7 dedicated programs :
1 - Dent pulling operations with triangular washer
2 - Welding of wavy wire
3 - Welding of the big rings
4 - Welding of the small rings
5 - Impact reduction
6 - Carbon electrodes for steel shrinking
7 - Welding of M5 studs to fix earth and connection cables to vehicle
PRODUCT FEATURES
- Dedicated for various dent pulling and straightening body shop operations, Spot PRO is a high spec machine able to deliver up to 12 kVA of power.
- The welding current and welding duration are set separately for a more accurate control of the impact to galvanise and particularly thin steel sheet.
- Normal mode, where the operative can independently set the welding current and welding time to fit the requirements of a particular job/material thickness.
- For extra control, two welding operations are available:
- Automatic operation: the arc begins when the tool is in contact with the metal sheet.
- Manual operation: the arc begins when the tool is in contact with the metal sheet and the trigger is pressed.
TECHNICAL PROPERTIES
| Supply Voltage U1 |
|
1 Phase, 220 V 50 Hz. |
| Open Curcuit Voltage U2 |
|
7,7 V |
| Supply Fuse |
C Type |
1x32 A |
| Maximum Input Power Primax |
|
12 kVA |
| Pulling Capacity |
|
0,30 to 1,60 mm |
| Power Setting |
|
Digital 11 Level |
| Current Setting |
|
Digital 11 Level |
| Insulation Class |
|
H |
| Protection Class |
|
IP 21 |
| Dimensions (w/l/h) (cm) |
|
47 x 50 x 100 |
| Weight |
|
40 kgs |
