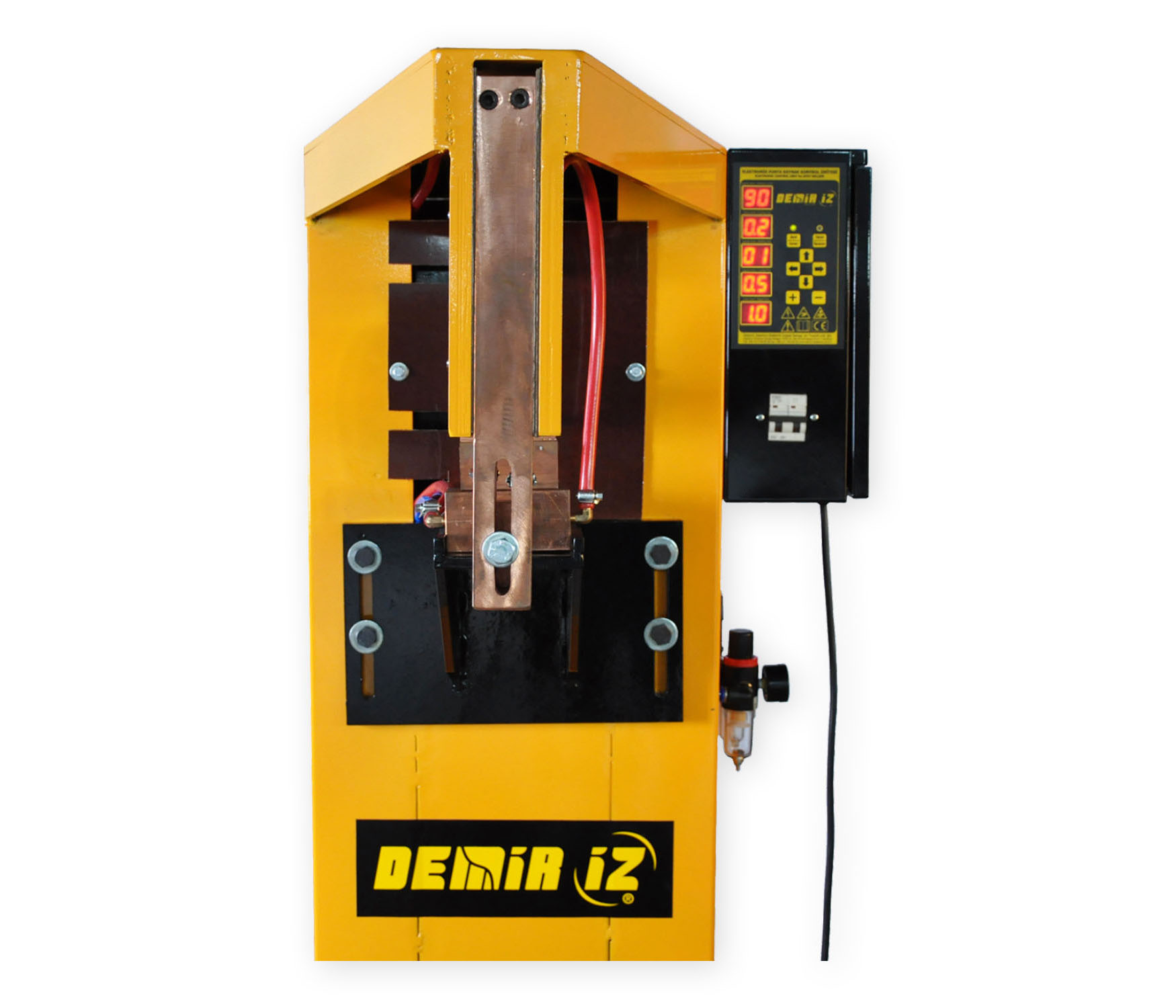

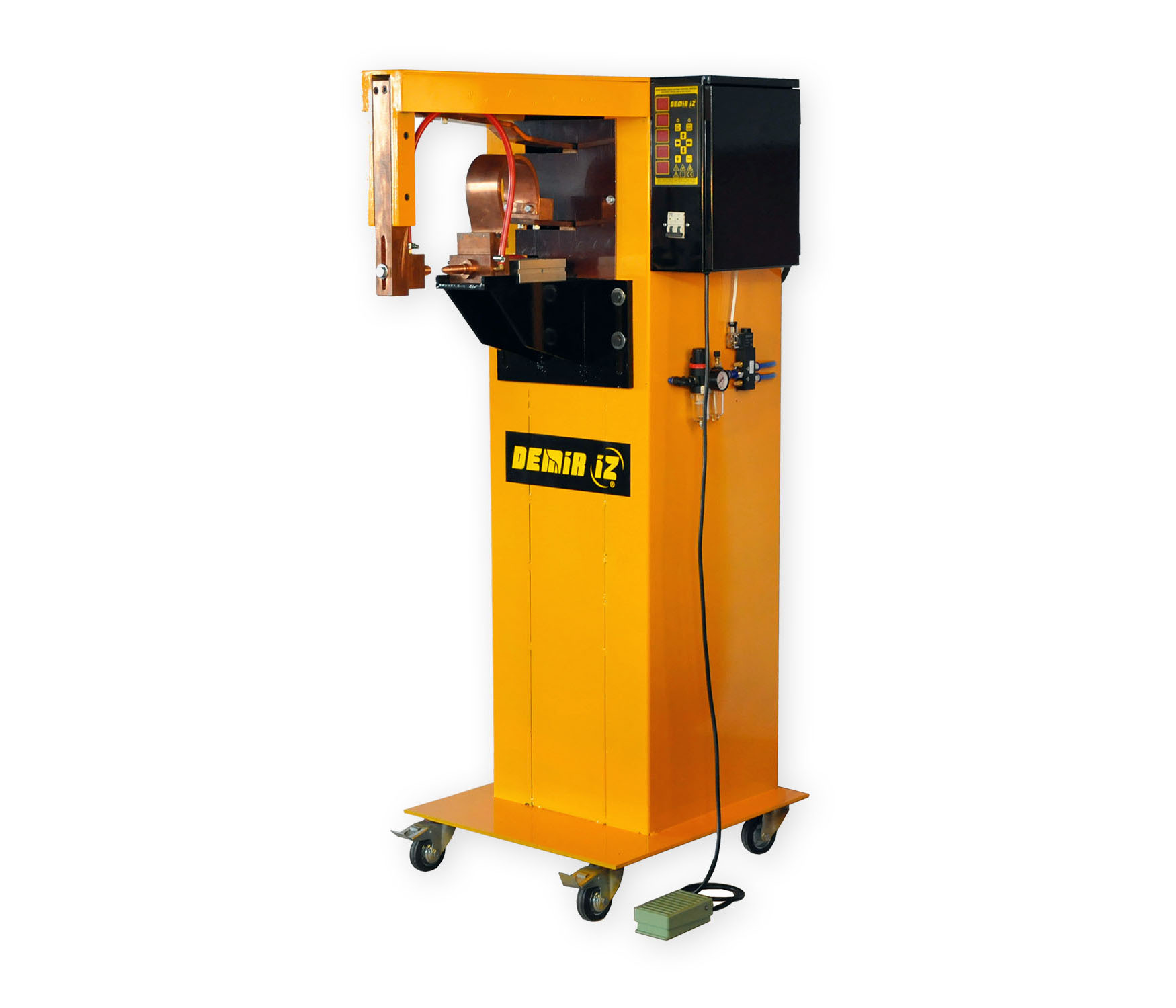

KANAL 45
Air Operated Spot Welders
It is a professional type electronic time and current controlled spot welding machine with easy to use and pneumatic control, which has a strong and strong structure and can provide excellent results in the production of iron based materials and steel products.
It is mostly used to weld air ventilation ducts.
Areas of Useage
- Medium or large workshops
- Repair shops
- Manufacture of sheet metal and stove pipes
- Ventilation industry
- Manufacture of galvanized, stainless and steel articles
- Construction
- General Production Line
PRODUCT FEATURES
- Suitable for mass production
- Reliable operation with robust metal housing
- High transformer power output
- Coil former produced by high temperature resistant Nylon 6 (70%) and glass fiber (30%)
- Electronic current and time control
- 2 ~ 380V working possibility
- Tongs suitable for water cooling
- Strong bottom table made of durable cast iron
TECHNICAL PROPERTIES
| Supply Voltage U1 |
|
2~ 380 V |
| Maximum Primary Current |
|
70 A |
| Protection Fuse |
|
2 x 80 A |
| Maximum Input Power Primax |
|
45 kVA |
| Welding Thickness (mm) |
Carbon Steel |
4,00 + 4,00 |
| |
Galvanized |
2,00 + 2,00 |
| Working Depth |
|
125 cm Vertically |
| Step |
|
0-99 Electronic |
| Cooling |
|
Suitable for Water |
| Protection Class |
|
IP 21 |
| Dimensions (w/l/h) (mm) |
|
620 x 950 x 1520 |
| Weight |
|
232 kg |
